产品**

Product trademark

迈德盛牌

DE sheng brand

产品型号

Product model

YAD9402XCS

产品名称

The product name

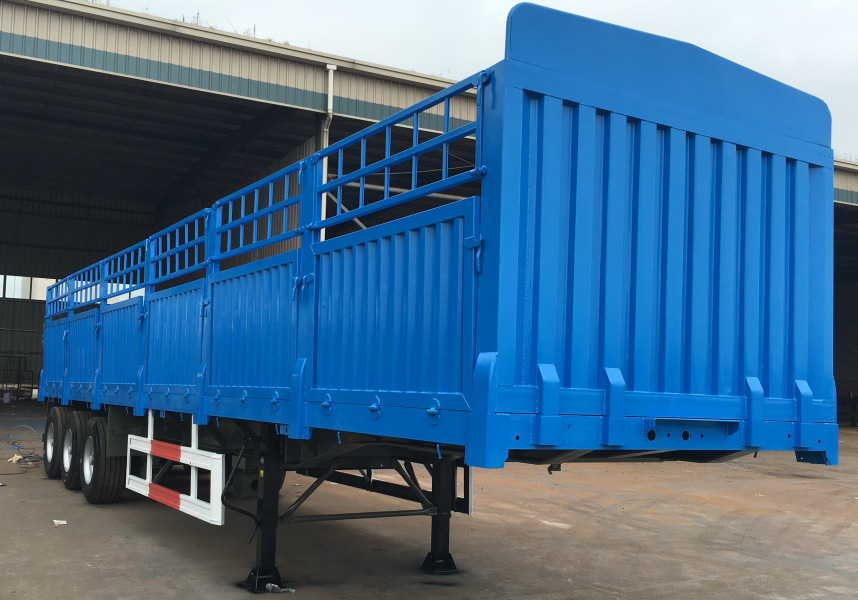

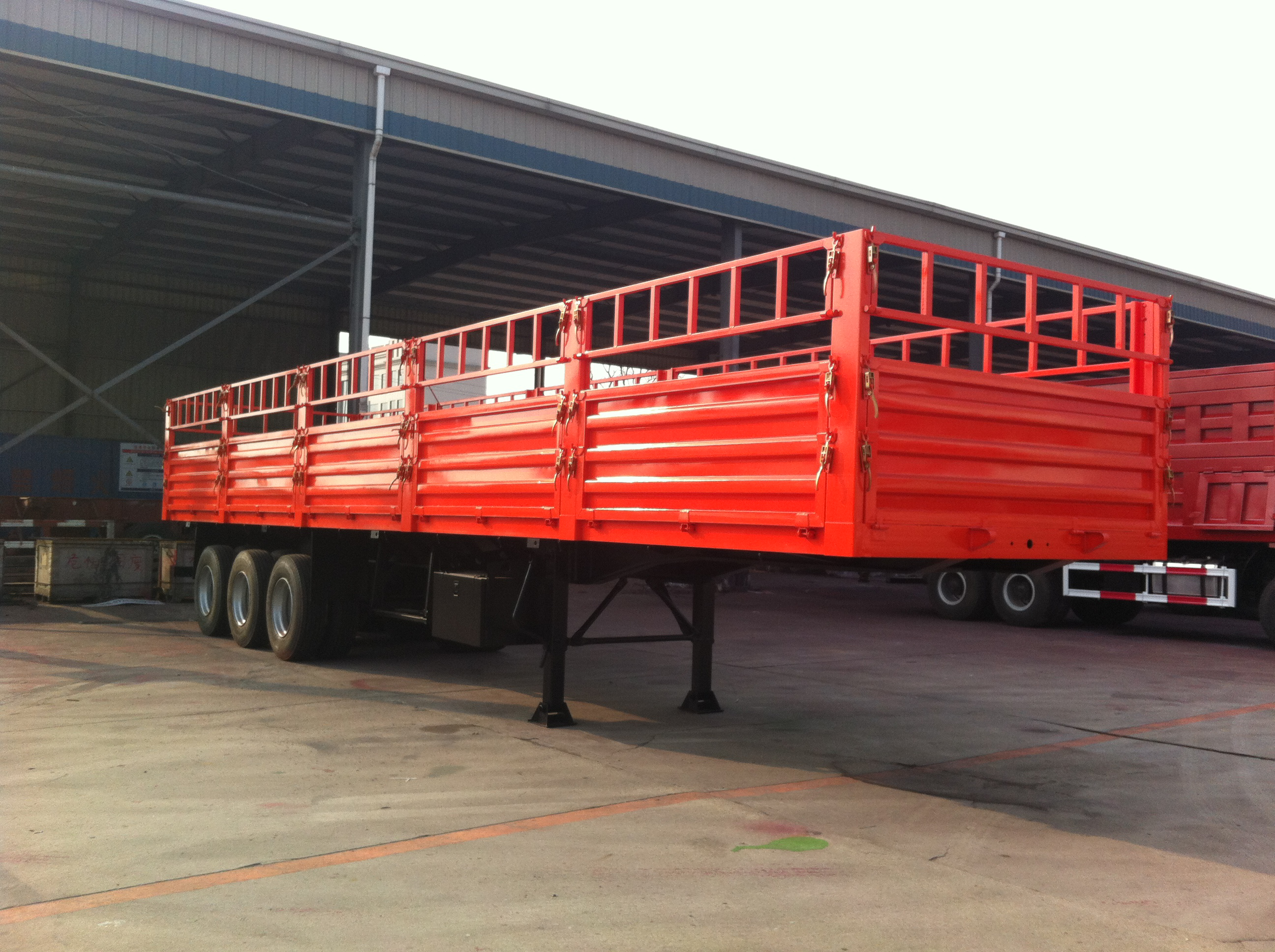

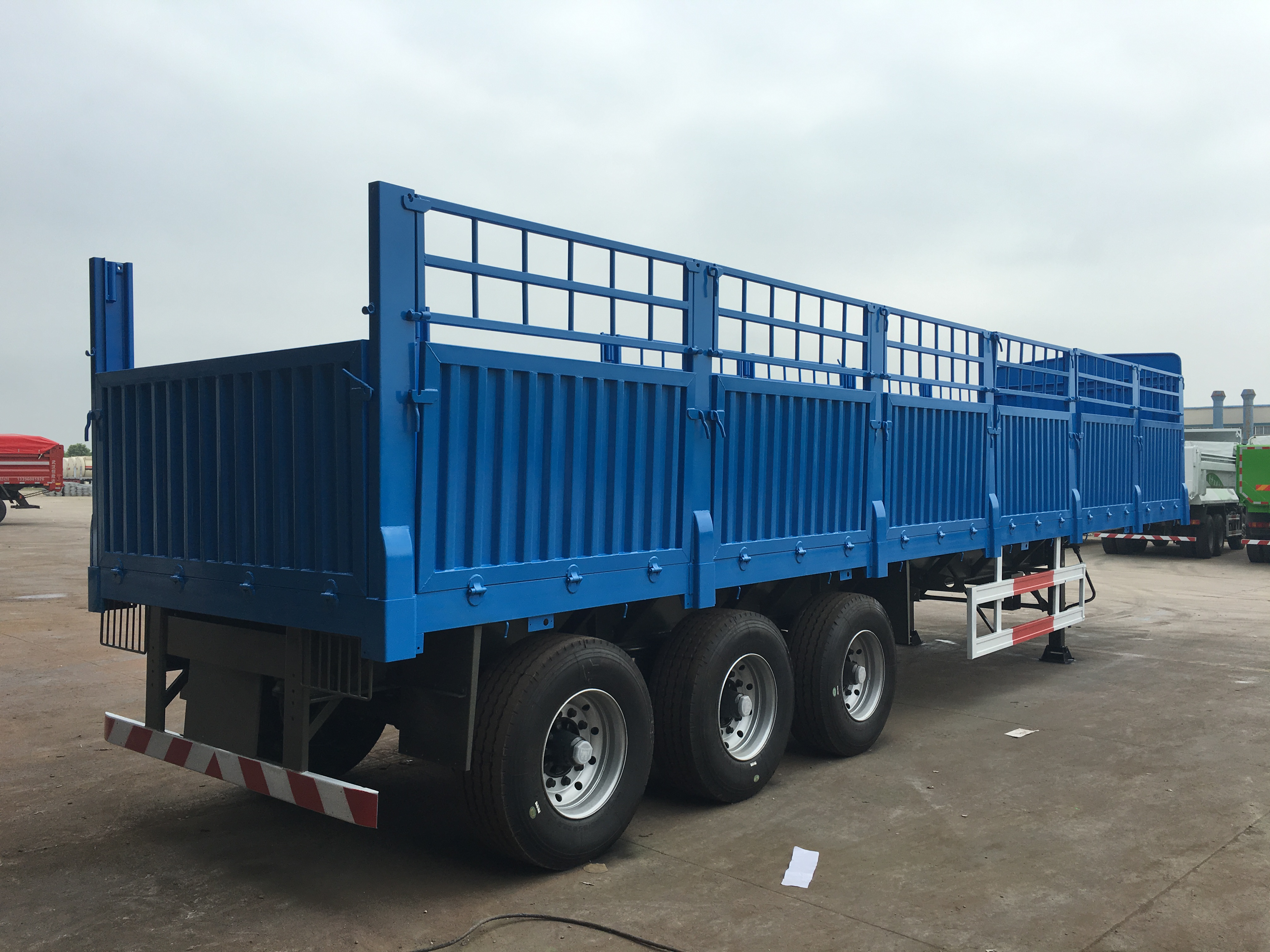

YAD9401XCS仓栅运输半挂车

The YAD9402XCSbarrel-type semi trailer

外形尺寸(mm)

External dimension (mm)

13900×2550×2875

总质量(Kg)

Total mass (Kg)

66000

货厢尺寸(mm)

Cargo compartment size (mm

12400,11900,11400×2410,2460×2200,2000,1800

额定载质量(Kg)

Rated load (Kg)

58500

接近角/离去角(°)

Angle of approach/departure (°)

-/16

整备质量(Kg)

Reconditioning mass (Kg

7500

前悬/后悬(mm)

Front/Rear suspension (mm)

-/1960

轴数

Number of shaft

3

轴距(mm)

The wheelbase (mm)

7480+1310+1310

轴荷(Kg)

Axle weight (Kg)

21450/44550

**高车速(Km/h)

Maximum speed (Km/h)

80

其它

Other

该车采用适用于牵引仓栅运输半挂车的牵引车,

车长同轴距、后悬对应关系为:13900/7480+1310+1310/2600

ABS系统生产厂家为广州瑞立科密汽车电子股份有限公司,型号为CM2XL-4S/2M;

侧防护所用材料材质为铝合金,与车架螺栓连接;后防护所用材料材质为Q235,与车架焊接连接;后部防护装置的断面尺寸为(mm):140×60或140×90,离地高度为500mm.

The car adopts a tractor suitable for the traction barn grille to transport semi-trailers.

The correspondence between car length and wheelbase and rear suspension is :13900/7480+1310+1310/2600

ABS system manufacturer is Guangzhou Ruili Kemi Automobile Electronics Co., LTD., model cm2XL-4S /2M;

The side protection material is aluminum alloy, which is connected with the frame bolts;The material used for rear protection is Q235, which is welded with the frame;The section size of the rear protection device is (mm):140×60 or 140×90, and the height from the ground is 500mm.
